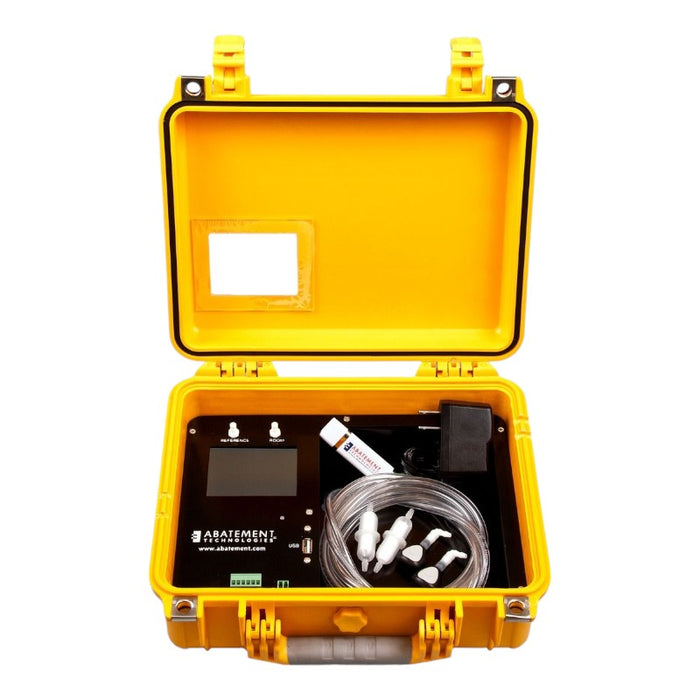

Abatement Technologies Manometer Portable Differential Pressure Monitor PPM3 S in white background
Availability:
In stock

Abatement Technologies Manometer Portable Differential Pressure Monitor PPM3-S

by Abatement Technologies
$1,478.50 - $1,478.50
$1,478.50
$1,478.50 - $1,478.50
$1,478.50

6 FREE REPLACEMENT TEETH

Have a question?

Talk to one of our professionals today!

Call Now
Free & Fast Shipping For All Orders Over $5,000
Free & Fast Shipping For All Orders Over $5,000
Free shipping on all orders to the contiguous U.S.
Manufacturer Warranty Included
Manufacturer Warranty Included
Manufacturer's Warranty Included
We Have Financing Options Available
We Have Financing Options Available
Flexible payment options available with Shop Pay

Accurate, Portable Differential Pressure Monitor for Critical Zones

The PPM3-S Portable Differential Pressure Monitor from Abatement Technologies provides immediate cleanroom and health-care isolation area and construction containment air pressure readings. The highly sensitive digital manometer detects air pressure variations to help organizations meet ICRA, ASHRAE and other regulatory requirements. The lightweight device features a compact design which allows tool-free installation for both short-term and regular jobsite verification needs.

Engineered for Professionals: Your Trusted Manometer

The PPM3-S functions as a reliable manometer which provides immediate trustworthy measurements without needing calibration or manual adjustments. The digital display shows current pressure readings and historical trends which enables teams to document airflow performance during inspections. The device provides fast and precise measurements to eliminate any need for manual guesswork when maintaining negative or positive pressure spaces.

Features

  • Rugged Digital Manometer: Built with an ultra-tough molded polymer case, the PPM3-S is designed to withstand harsh conditions while protecting its internal components.
  • Clear View Window: The clear polycarbonate view window allows users to monitor readings while keeping the case closed, protecting the device from contaminants.
  • Color Touch Screen Display: The intuitive touch screen interface simplifies operation, making it easy to view real-time data and navigate settings.
  • USB Port: Allows for on-site firmware upgrades and downloading of archived history logs in CSV format, which can be reviewed in text editing or spreadsheet programs.
  • Built-In Visual and Audio Alarms: Alerts users to pressure deviations with an audible alarm system, including an audio override feature.
  • Extended Battery Life: Operates for up to 16 days on battery power, providing continuous monitoring in critical situations.
  • Wide Pressure Range: Measures differential pressure from -25Pa (-0.1”) to +25Pa (+0.1”), ensuring accurate readings in a variety of settings.

Ideal for Jobsite Use: A True Portable Differential Pressure Monitor

This portable differential pressure monitor operates in tight spaces, trailer applications, and busy patient hallways without taking up valuable workspace. Its job-ready magnetic mount, backlight display, and low-battery indication arrive straight from the box. From following an installation of a room differential pressure monitor to inspecting a sealed containment area, you can rely on what you're reporting with the PPM3-S.

Dimensions (L x W x H)12”L x 10”W x 5”H (30.48cm x 25.4cm x 12.7cm)
Max Power Consumption150mA at max display brightness, 300uA in Battery Mode
Pressure Units DisplayedInches of water column (inWC), Pascal (Pa)
Burst PortsAdaptable with 1/8” (3mm) ID silicone tubing
Range of Measurement(+ / -) 0.10inWC, (+ / -) 25Pa
Accuracy of Measurement(+ / -) 3% Full Scale
Display3.5” 262K color TFT display, 320 x 240 resolution
AlarmsCustom alarm set points from -0.1000inWC (-24.884Pa) to 0.1000inWC (24.884Pa) at a resolution of 0.0001inWC (0.025Pa)
Net Weight5 lbs (11.02kg) including case, Battery Charger and hose
Aux Alarm Connection6 position 3.5mm header port, dual relays with normally open, normally closed and common; each relay output rated at 2 amps @ 30 volts DC; no power is provided
Pressure Ports0.194” (1.5mm) quick connect fitting (quick connects supplied with two barbs for 1/8” (3mm) ID tubing)
USB Port9,000 feet maximum
Data Storage CapacityData transmitted in CSV file via USB flash drive can be imported into any text based editor or spreadsheet program
Storage Temperature-22°F - 176°F (-30°C - 80°C)
Data TypeUSB V1.0 type A for connecting USB flash drive or thermal printer
Operating Altitude0% - 85% relative humidity (non-condensing)
Pinless Moisture>12000 logged events in non-volatile memory (no power or battery required)
Pinless Moisture Depth MaxPowered by lithium polymer battery that provides one year of clock operation when AC power is not present. Maintaining the charge in the battery insures that the time will not be lost.
Internal Clock4MB
Data LoggingUp to 1 year in Off Mode
Display Resolution0.0001 in WC, 0.025 Pa
Battery Life6 V DC @ 1.0 A Input range of 100-240 VAC, 50-60 HZ
Job NumbersUp to 6 months in Battery Mode
Door OpeningDate and time are shown with a logged event. Events are: alarm condition with current pressure, system startup, alarm reset, configuration change, low battery, archive erased, calibration, start “Battery Mode”, start “ON Mode”, start “OFF Mode”, pressure interval, and next day.
Sleeve and Top Cover Material256 available ranging from 0 to 255
Charging Time3.7 V, 2AH Capacity; Lithium Polymer; recharges in 5 hours
