Abatement Technologies Single Room Pressure Monitor RPM-RT1

Accuracy and Safety with the RPM-RT1 Room Pressure Monitor

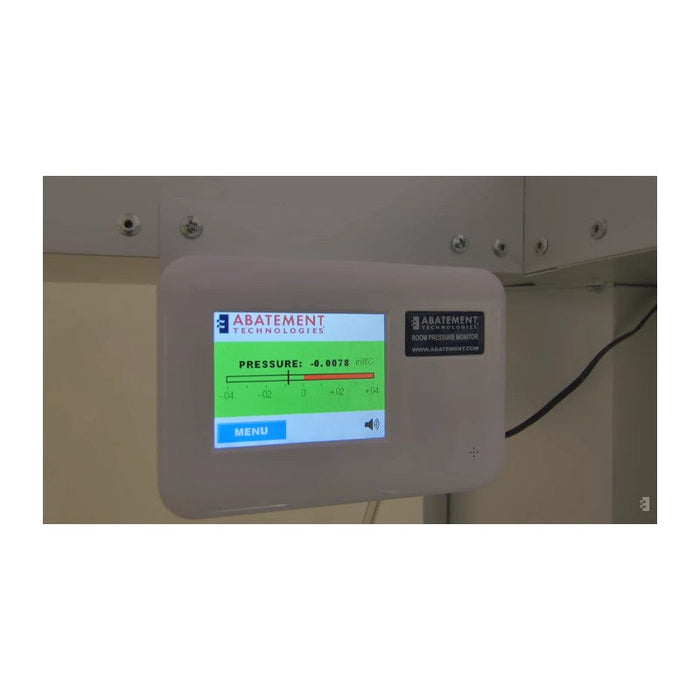

The Abatement Technologies RPM-RT1 room pressure monitor serves high-stakes environments including hospital isolation rooms and cleanrooms and laboratories where air management becomes critical. The device measures positive or negative pressure in one space while delivering immediate time-based feedback with precise accuracy. The system features a user-friendly digital interface together with an advanced alarm system which detects instant pressure deviations beyond safe ranges to enable staff response before safety levels are compromised. The system provides long-term reliability through its wall-mountable compact design which makes it suitable for permanent installation and critical project areas where air integrity must be maintained.

Features

• Precise Pressure Monitoring: Measures differential pressure in a range of -0.10 in. water gauge (-25 Pa) to +0.10 in. water gauge (+25 Pa).
• Advanced Alarm System: Includes both visual and audible alarms with customizable settings, including an alarm range of -0.04 in. water gauge (-10 Pa) to +0.04 in. water gauge (+10 Pa), audio alarm delay, and timed shutoff features.
• User-Friendly Interface: Features an intuitive, menu-driven touch screen for easy setup and operation, with a color-coded screen background (Green, Yellow, Red) indicating the alarm status.
• Data Logging and Accessibility: View historical pressure readings directly on the screen or upload data to a PC via a USB stick for detailed analysis.
• Security and Network Integration: Offers password protection to secure settings (can be disabled if not required) and supports BACNET & N2 network capability for integration with building management systems.
• Versatile Applications: Ideal for critical areas such as infectious isolation rooms, protective environments, central sterilization departments, and hospital construction zones.
