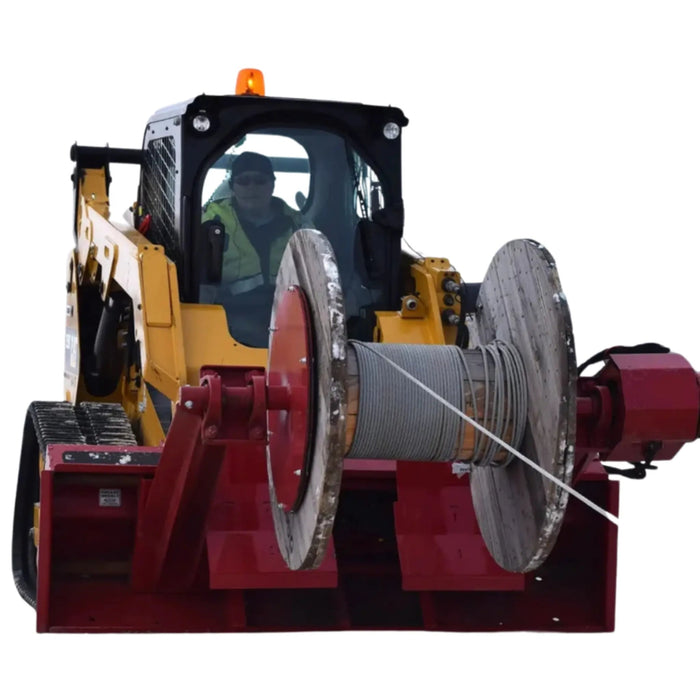

EZ SPOT UR Skid Steer Wire Reel Attachment in white background
Availability:
In stock

EZ SPOT UR Skid Steer Wire Reel Attachment

by EZ SPOT UR
$18,308.73 - $18,308.73
$18,308.73
$18,308.73 - $18,308.73
$18,308.73

6 FREE REPLACEMENT TEETH

Have a question?

Talk to one of our professionals today!

Call Now
Free & Fast Shipping For All Orders Over $5,000
Free & Fast Shipping For All Orders Over $5,000
Free shipping on all orders to the contiguous U.S.
Manufacturer Warranty Included
Manufacturer Warranty Included
Manufacturer's Warranty Included
We Have Financing Options Available
We Have Financing Options Available
Flexible payment options available with Shop Pay
FIRST ORDER DISCOUNT: 5% Applied At Checkout
5% off applied at checkout for all orders above $2,000. Expires soon. Exclusions Apply.

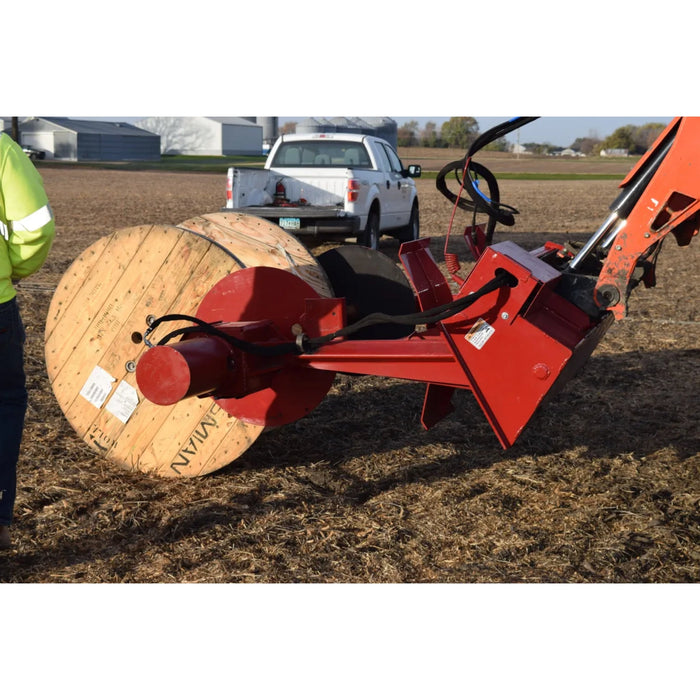

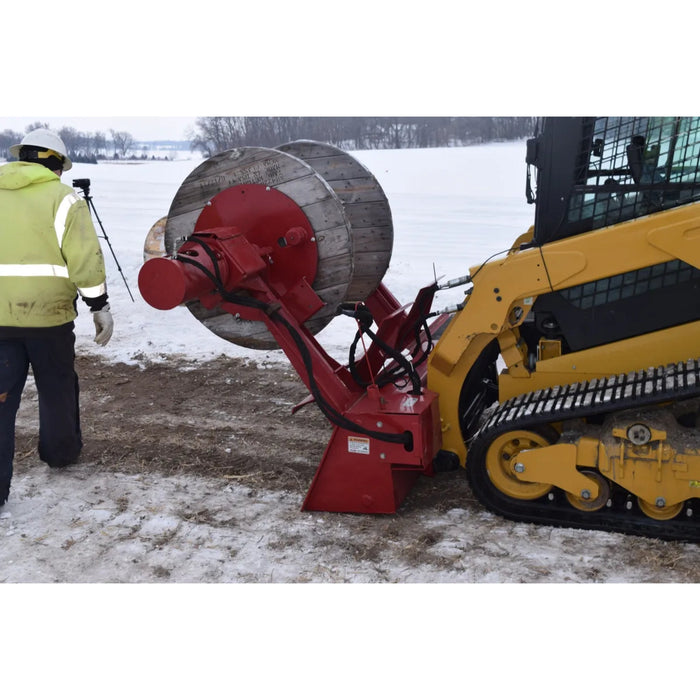

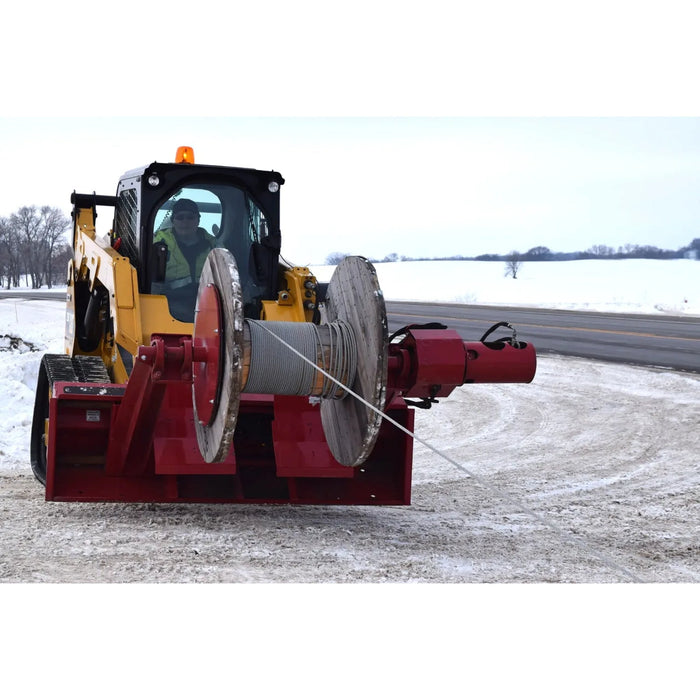

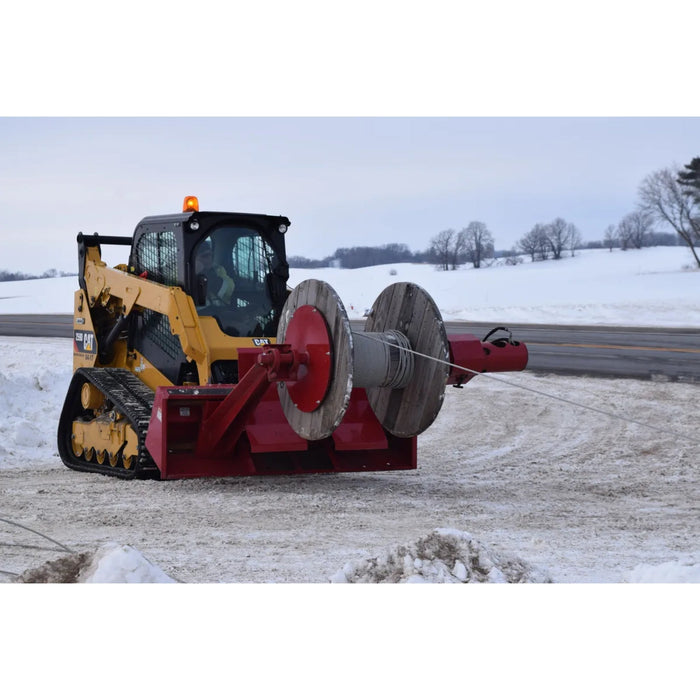

Versatile Skid Steer Attachment for Wire Reels

The EZ SPOT UR skid steer prong is designed and built to work with wire reels efficiently. It is built to provide reliable performance when used with large core spools commonly used in industrial, agricultural, and construction industries.

Specifications

  • Equipped with two 2.5" x 12.5" hydraulic clamp cylinders. Each cylinder has a breakout force of 14,726 lbs.
  • The clamping plates are rubber-lined for increased grip on the spool.
  • Two main shafts are Ø2.5" 4140 that go into the center hole of the spool.
  • Spring-loaded pin catches the outer hole in the spool for a non-slip grip when winding wire.
  • Rotation is powered by a hydraulic motor and planetary gear box combination. Produces a maximum of 46,452 in-lbs of torque and 95 rpm at 3000 psi and 40 gpm.
  • Motor has a displacement of 18.7 cubic inches per revolution.
  • Gear box has a 5.2:1 reduction ratio.
  • Comes complete with hoses, flush faced couplers, spring hose mount, and wiring harness.
  • Can be adapted to fit excavators, wheel loaders, telehandlers and backhoes*. *Requires specialty bolt-on mount.

Why Choose the EZ SPOT UR Wire Reel Attachment?

The EZ SPOT UR wire reel attachment allows one to easily lift and unwind designed wire to reels. be strong and stable, with excellent control, which is why they are ideal for professionals who work with electrical wiring, fencing, or any form of industrial wiring.

Durable and Reliable Wire Reel Attachment

Made of high-strength materials, this attachment is built to provide reliable performance no matter the working environment. This is because it is highly versatile and works with most wire reels, making it suitable for any project while at the same time saving on time and energy.
