Iron and Oak 20 Ton 3 Point Tractor Log Splitter

Iron and Oak 20 Ton 3 Point Tractor Log Splitter

The Iron and Oak 20-ton 3-point Tractor Log Splitter is an aggressive and reliable means to take care of your wood-splitting tasks with efficiency. Designed for any category 1 or 2 hitch, this log splitter brings together precision, efficiency, and strength for an ideal combination, whether you are a professional or a homeowner. Whether splitting firewood or processing large logs, this tractor log splitter is a valuable addition to any equipment lineup.

This log splitter is fully customizable with the following optional accessories:

• 4 Way Wedge - This 4 way wedge is extremely heavy duty and measures 20 inches wide. A very well thought out design allows you to slide the 4 way wedge on and off with in seconds. The 4 way wedge sits on it's own post behind the existing single wedge and includes two spacers for height adjustment. Split one log once instead of 3 times!
• Log Tables / Cradles - Adjustable tables are great for piling up extra wood and logs to work with.

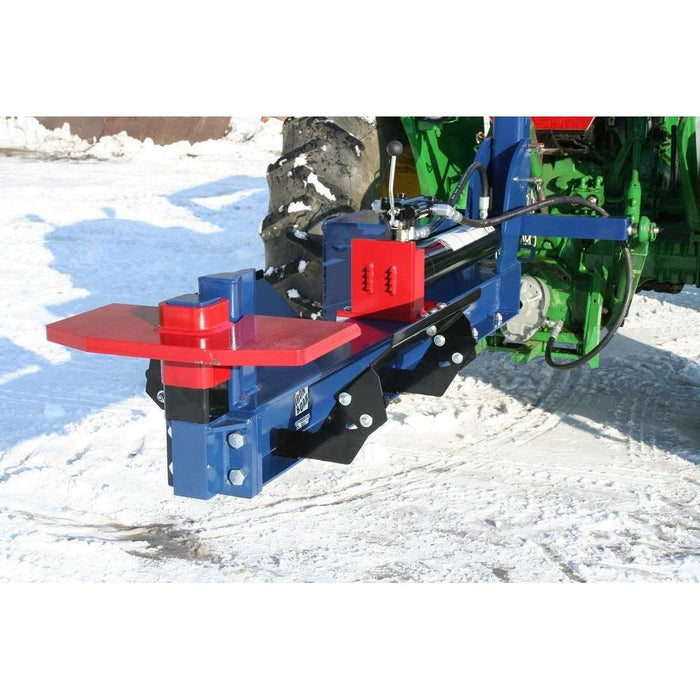

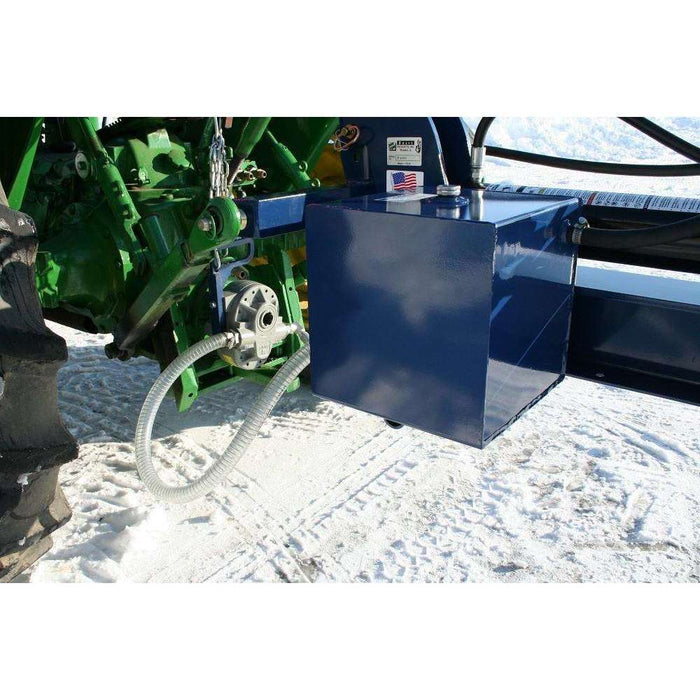

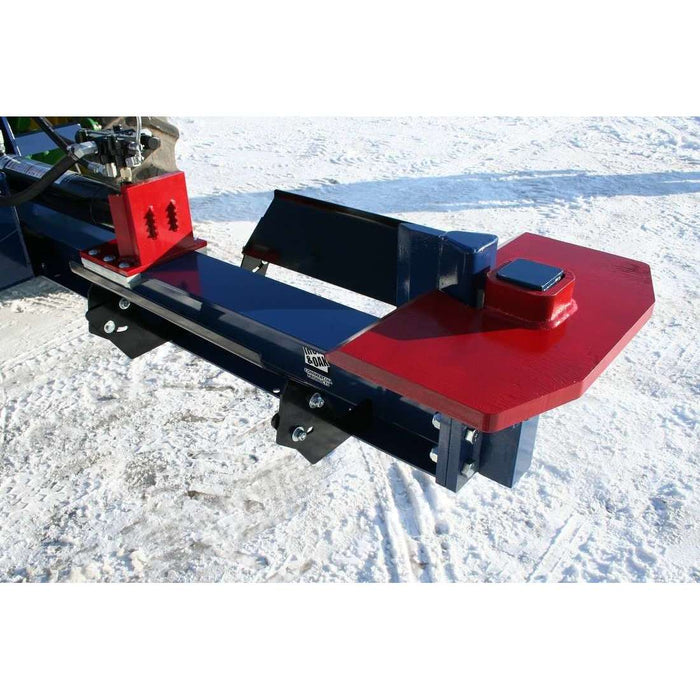

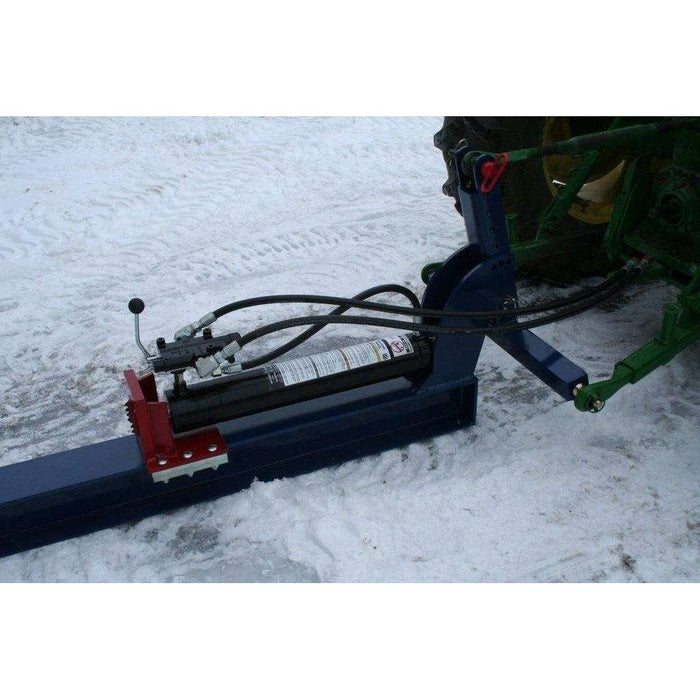

Please note: Pictures show splitter with optional accessories above. They are not included unless you purchase them. If you are unsure please contact us.

*Tonnage ratings are rated at "maximum potential" which is around 20 tons. Actual PSI of your tractor and other things such as environmental conditions can impact actual tonnage.

Detailed Specifications

• Tonnage: 20 Ton (40,000lbs) Depending on tractor
• Beam: Heavy-duty 6" H Beam
• Wedge: 9" high carbon steel
• Cylinder Stroke: 24 Inches
• Log Opening: 25 Inch maximum
• Cycle Time: Depends on your tractor / PTO is 14 seconds
• Operating Position: Horizontal
• Working Height: Adjustable from ground to waist level
• Cylinder Size: 4" x 24" Clevis type cylinder welded body 1.75" rod
• Hydraulic Tank (PTO Units): 8 Gallon Tank
• Hydraulic Capacity: 9.5 gallons (including tank, cylinder, hoses)
• Safety Control Valve: Detent - Auto return
• Weight: 400 lbs
• Made in USA: Yes
• 4 Way Wedge:Optional
• Log Tables / Cradles: Optional
• Hoses & Connectors: No, not included
• PTO Kit: No not available
