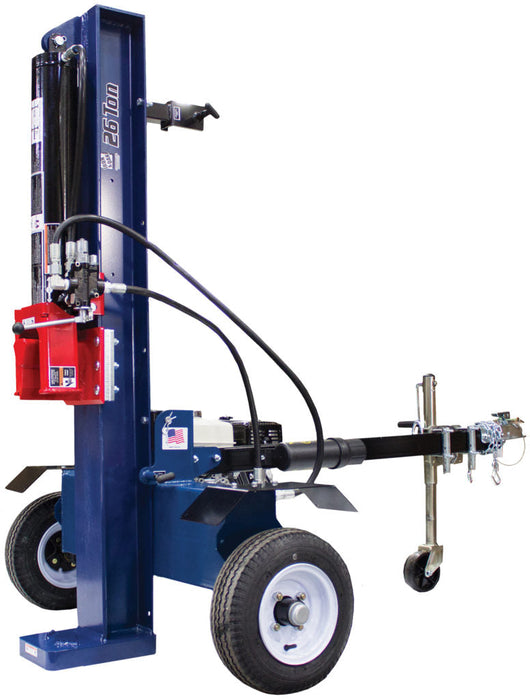

Iron and Oak 26 Ton Vertical Horizontal Log Splitter Torsion Axle

Iron and Oak 26 Ton Vertical Horizontal Log Splitter

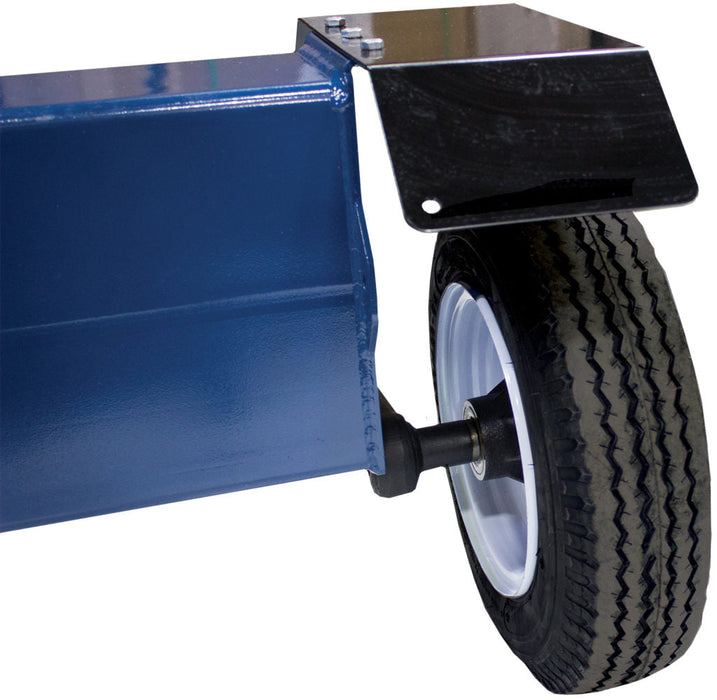

The Iron and Oak 26-ton Vertical Horizontal Log Splitter is a ideal combination of versatility and power, hence very reliable for heavy-duty wood splitting. Designed for both professionals and homeowners, the vertical horizontal operation of this log splitter allows for seamless handling of logs of any size. It features a heavy-duty torsion axle that is designed to provide consistent performance in demanding environments.

This log splitter is fully customizable with the following options:

• Log Tables / Cradles - HV units catch falling wood saving you from bending over and picking up split wood off the ground and splitting again. Just imagine the amount of extra times you could save from bending over picking up firewood to split again from each cord of wood? (Tip: If you don't get log cradles at least make a table to catch that wood!) Cradles are fully adjustable from flat to an upward angle.

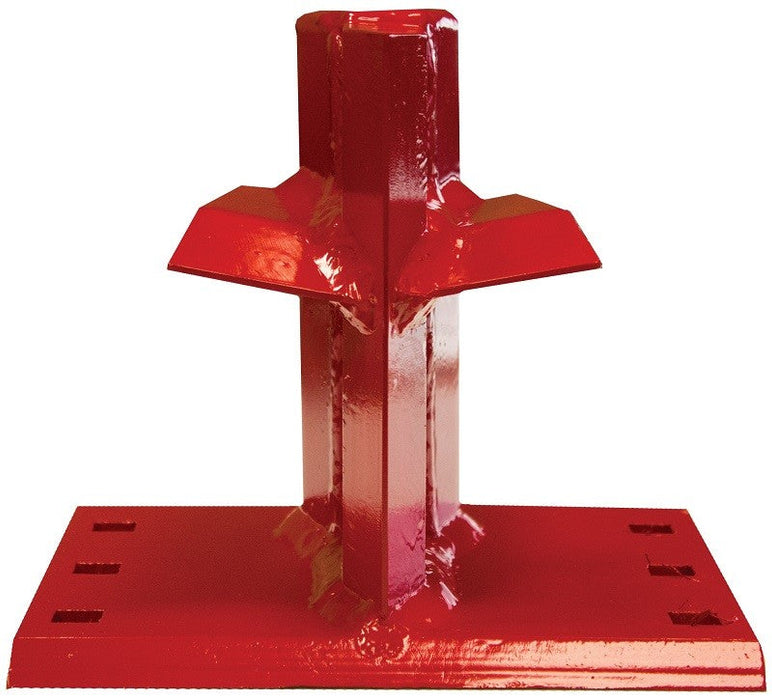

• 4 Way Wedge - Cut your splitting time down by 66 percent. Split a round once and get 4 pieces compared to splitting 3 times for the same 4 pieces.
• Log Dislodger - (Now Included Free) A log dislodger ejects stringy logs that stick on the wedge when it retracts. The log will hit the dislodger and self dislodge so you don't have to pull or hammer off the wood.
• Engine Guard - Bolts to the beam and protects engine from falling wood.
• Fluids Package - This package includes all the factory recommended fluids for your convenience so you can get to work without having to go to the store. Package consists of 10 gallons of Mag-1 ISO 32 hydraulic fluid. 1 quart of engine oil and a 14 oz tube of Multi-Purpose Grease to lube the rail for friction-less splitting.

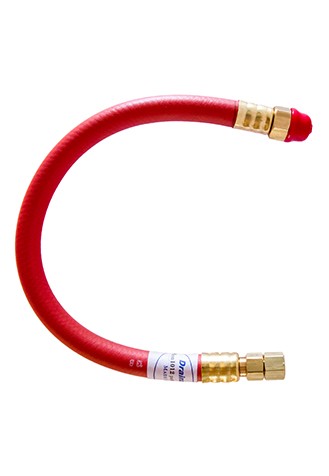

• Drainzit Oil Hose Kit - Drainzit oil hoses make changing oil easier and cleaner! Drainzit oil drain hoses allow you to change the oil in your small, gas-powered engine without tipping, dismounting, or modifying your engine in any way.
• Log Splitter Cover - High quality log splitter cover with draw strings to protect your investment from the elements.

Detailed Specifications

• Tonnage: 26 Ton - 52,000 lbs
• Engine: Honda GX270 9HP Commercial Engine
• Beam: Heavy Duty 6" Beam
• Wedge: 7.5 Inches high (4-Way 7 x 5)
• Cylinder Stroke: 24 Inches
• Log Opening: 25 Inches
• Cycle Time: 12 seconds (approx)

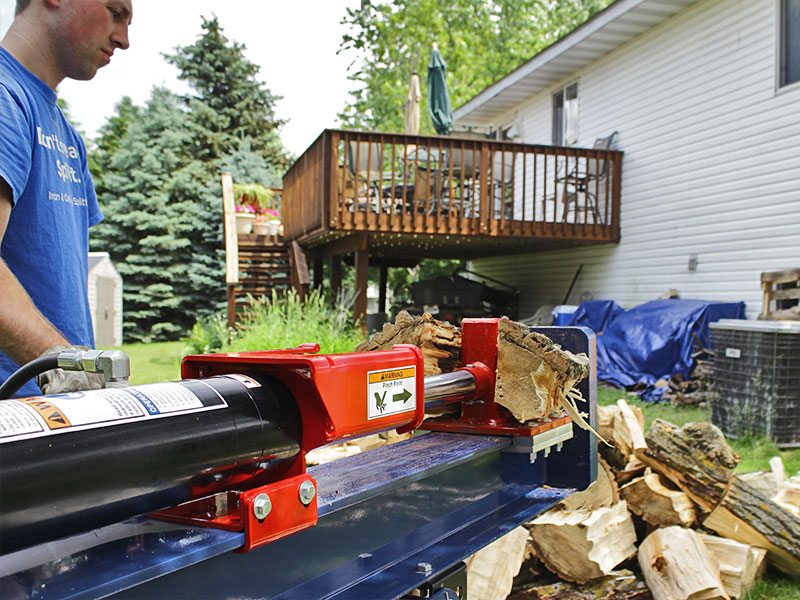

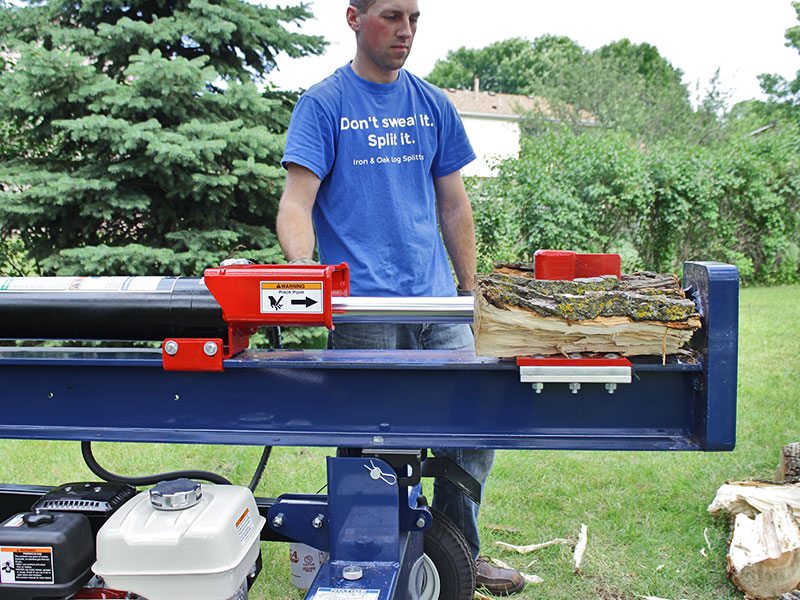

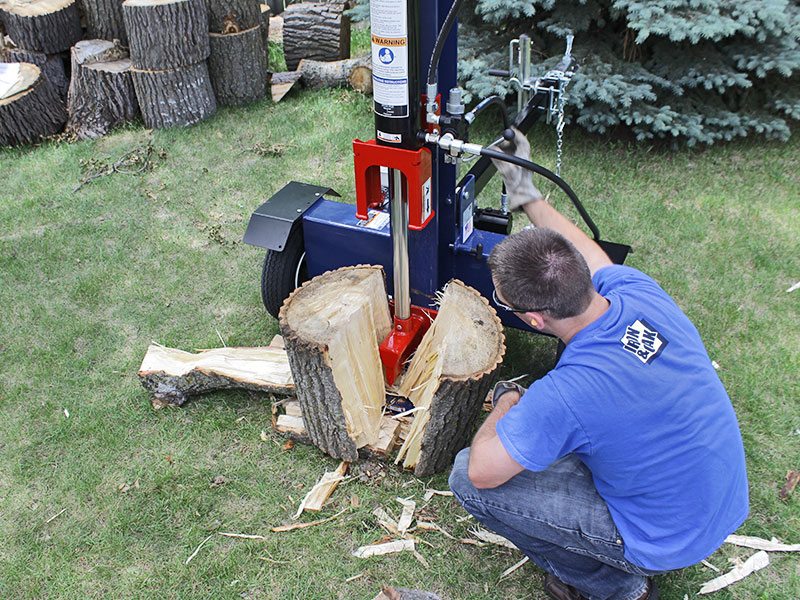

• Operating Position: Horizontal or Vertical
• Wheels and Tires: High-Speed, 4.80 x 4.00 x 8" (bolt-on)
• Operating Dimensions: Length: 92" Width: 48" Height: 34"
• Hitch Coupler: 2 Inch locking ball (standard)
• Cylinder Size: 4.5" x 24" Clevis type cylinder welded body 2" rod
• Hydraulic Tank: 7.5 Gallon
• System Capacity: 9.5 Gallons (including tank, cylinder, hoses, filter)
• Hydraulic Filter: Yes - Spin on type, 60 micron filter
• Hydraulic Pump: 16 GPM ( 2 Stage pump)
• Safety Control Valve: Detent - Auto return
• Weight: 700
• Made in USA: Yes
• Log Cradles / Tables: Optional
• Engine Guard: Optional
