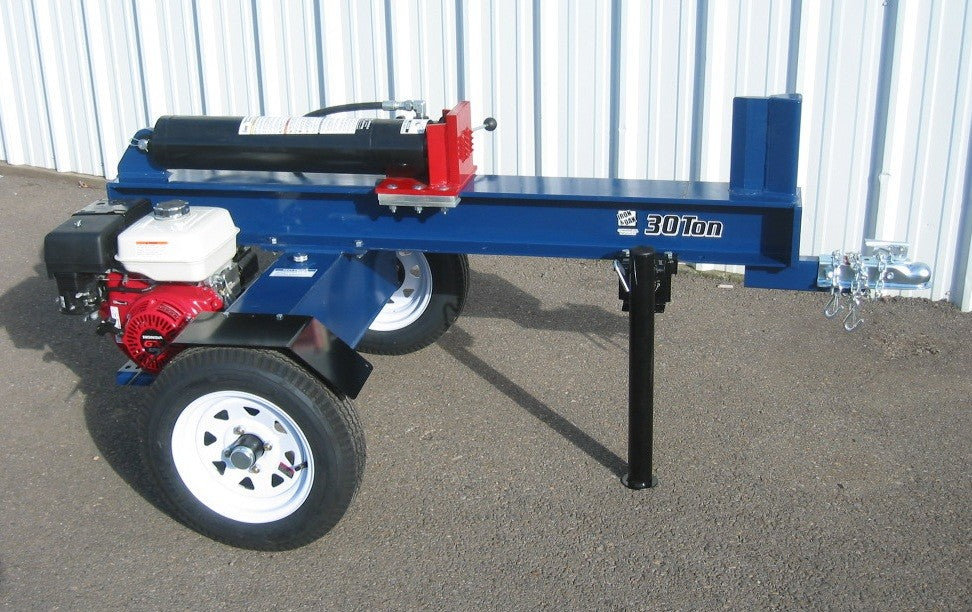

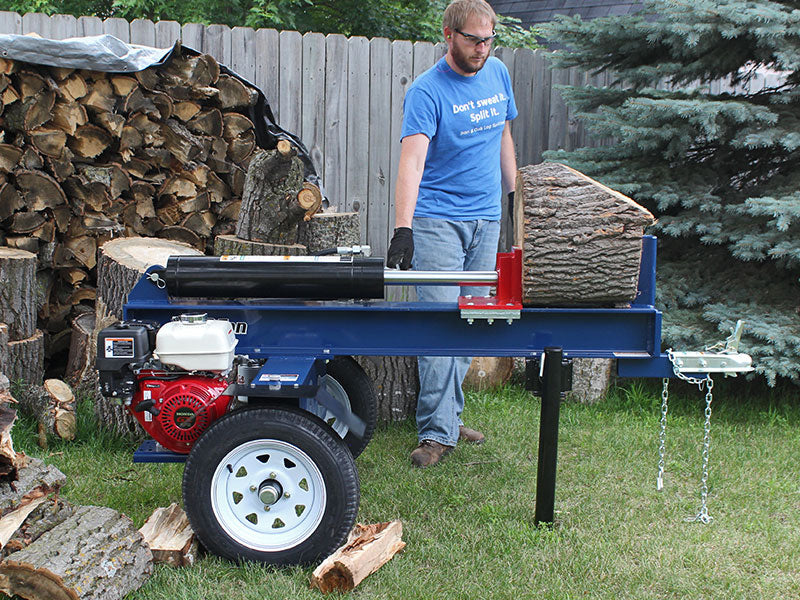

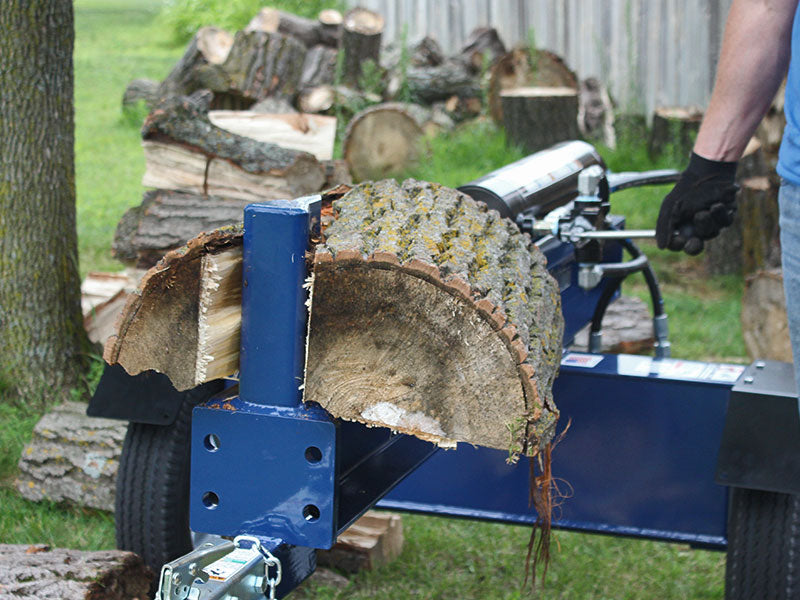

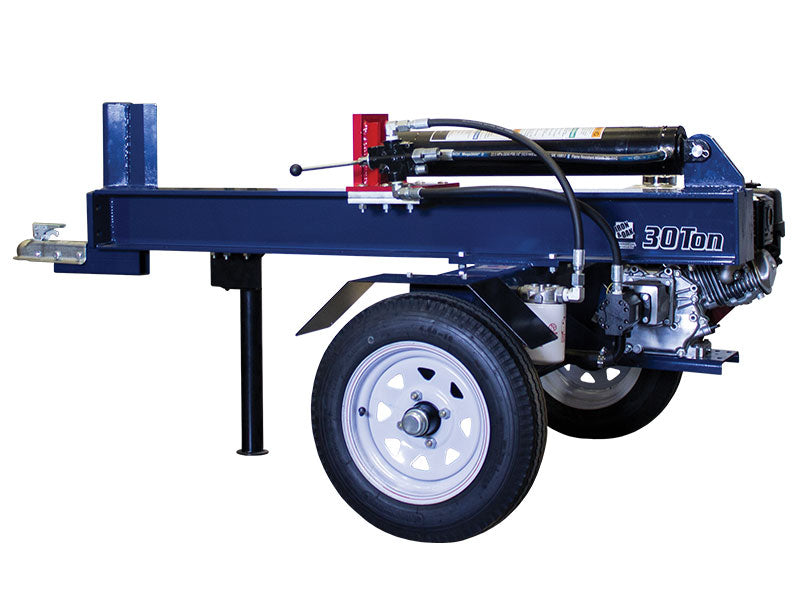

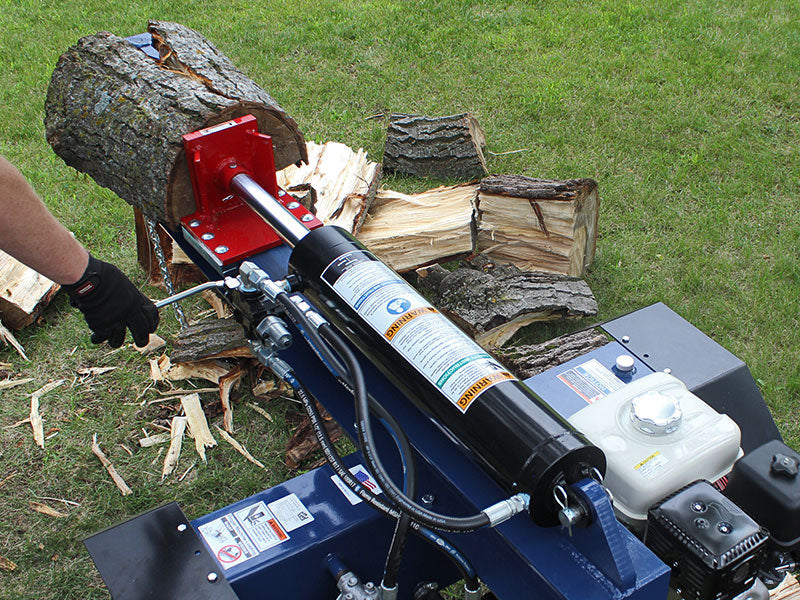

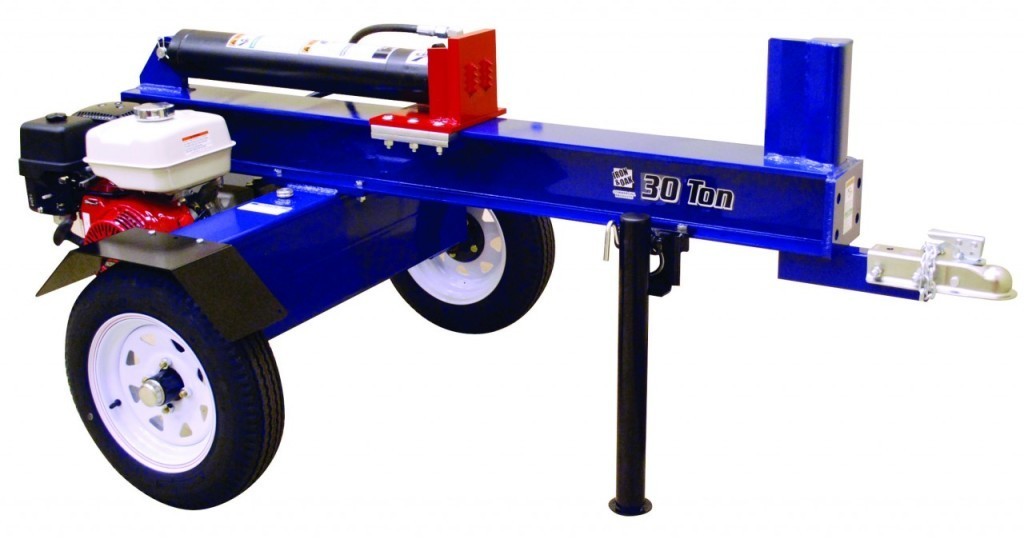

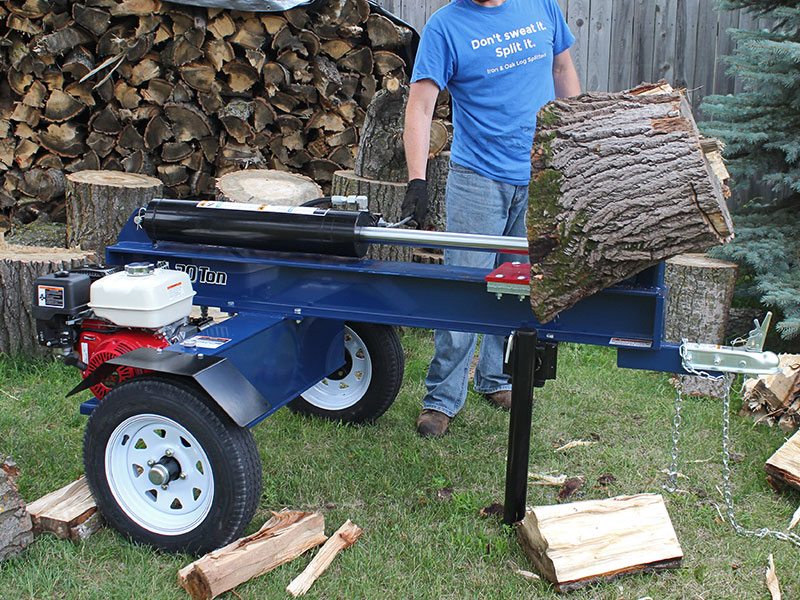

Iron and Oak 30 Ton Horizontal Log Splitter

Iron and Oak 30 Ton Horizontal Log Splitter

The Iron and Oak 30-ton Horizontal Log Splitter follows through with efficiency and power in its solid build qualities, making this machine a phenomenal option for your heavy-duty wood splitting at home and even professionally. This log splitter has a unique design that fits into a streamlined yet robust performance model for heavy duties involving wood-splitting, right from preparing firewood to clearing large logs.

This log splitter is fully customizable with the following options:

• 4 Way Wedge - This 4 way wedge is extremely heavy duty and measures 20 inches wide. A very well thought out design allows you to slide the 4 way wedge on and off with in seconds. The 4 way wedge sits on it's own post behind the existing single wedge and includes two spacers for height adjustment. Split one log once instead of 3 times!
• Log Tables / Cradles - Adjustable tables are great for piling up extra wood and logs to work with.

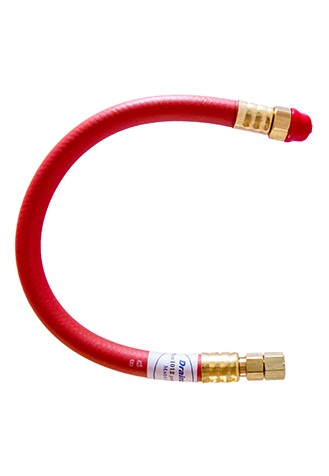

• Drainzit Oil Hose Kit - Drainzit oil hoses make changing oil easier and cleaner! Drainzit oil drain hoses allow you to change the oil in your small, gas-powered engine without tipping, dismounting, or modifying your engine in any way.
• Log Splitter Cover - High quality log splitter cover with draw strings to protect your investment from the elements.

Detailed Specifications

• Tonnage: 30 Ton (60,000lbs)
• Engine: Honda GX270
• Beam: Heavy-duty 6" H Beam
• Wedge: 9" high carbon steel
• Cylinder Stroke: 24 Inches
• Log Opening: 25 Inch maximum
• Cycle Time: 15-16 seconds (approx.)
• Operating Position: Horizontal
• Wheels and Tires: High-Speed, 6.50 x 4.80 x 12" (bolt-on)
• Working Height: 28" from ground to top of beam
• Hitch Coupler: 2 Inch locking ball (standard)
• Cylinder Size:5" x 24" Clevis type cylinder welded body 2" rod
• Hydraulic Tank: 7.5 Gallon Tank
• Hydraulic Capacity: 9.5 gallons (including tank, cylinder, hoses, filter)
• Hydraulic Filter: Yes - Spin on type, 60 micron filter
• Hydraulic Pump: 2 Stage - 16GPM
• Safety Control Valve: Detent - Auto return
• Weight: 650lbs
• Made in USA: Yes
• 4 Way Wedge: Optional
• Log Tables / Cradles: Optional
