Iron and Oak 30 Ton Log Splitter With Log Lift

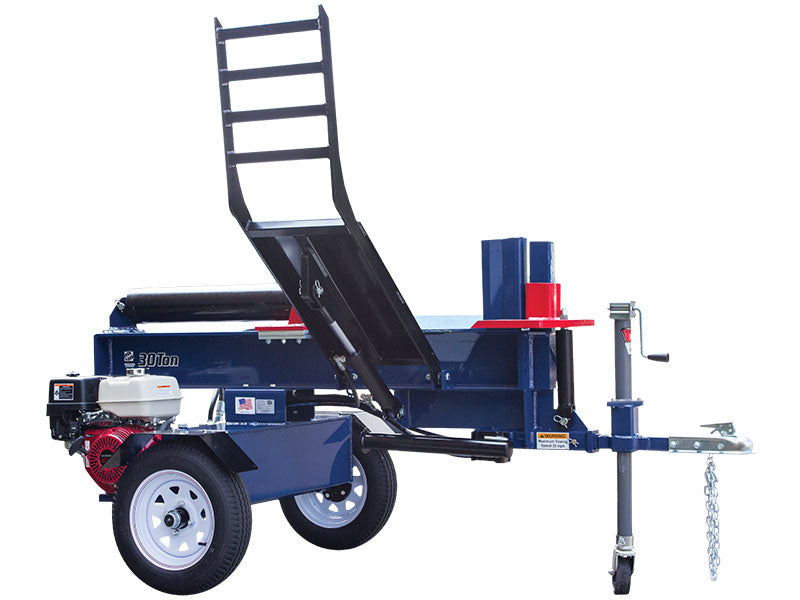

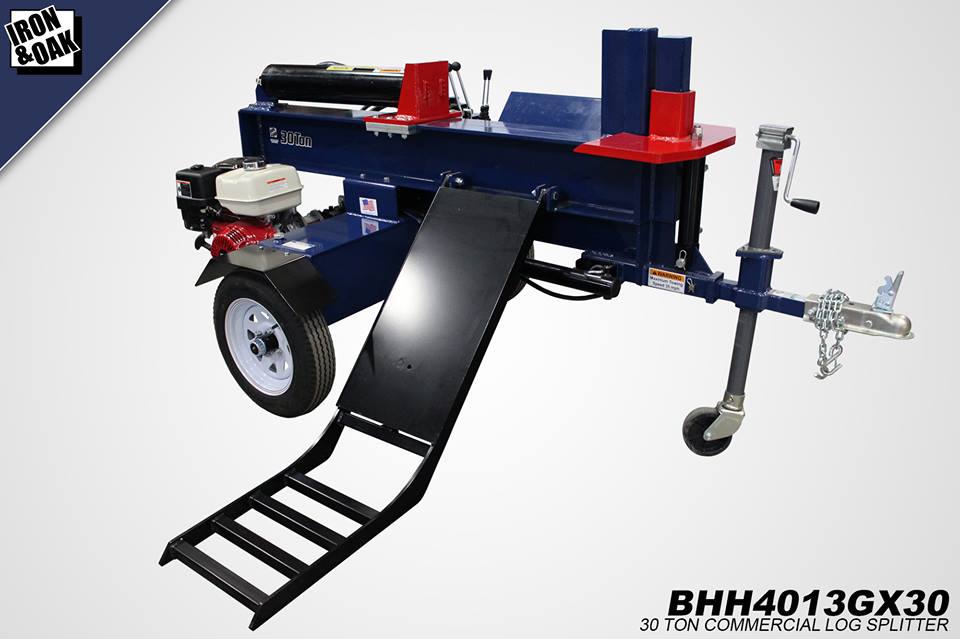

Iron and Oak 30 Ton Log Splitter with Log Lift

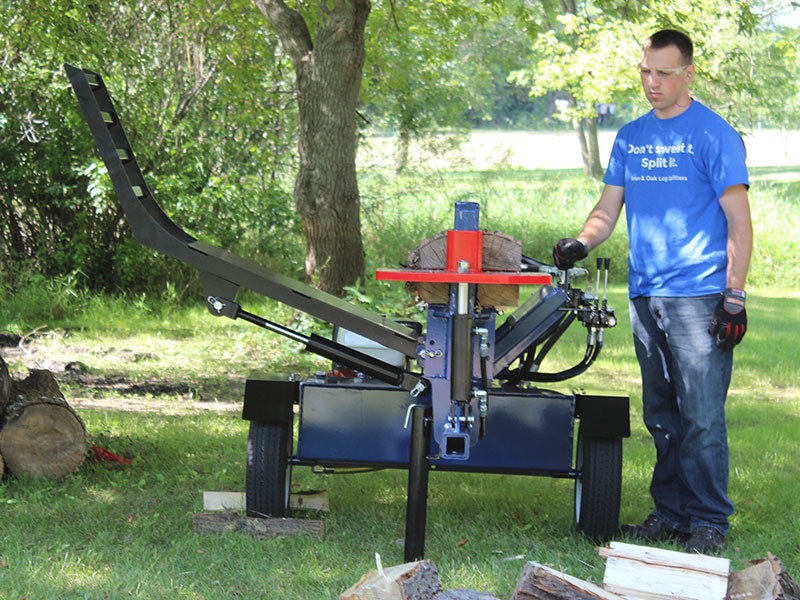

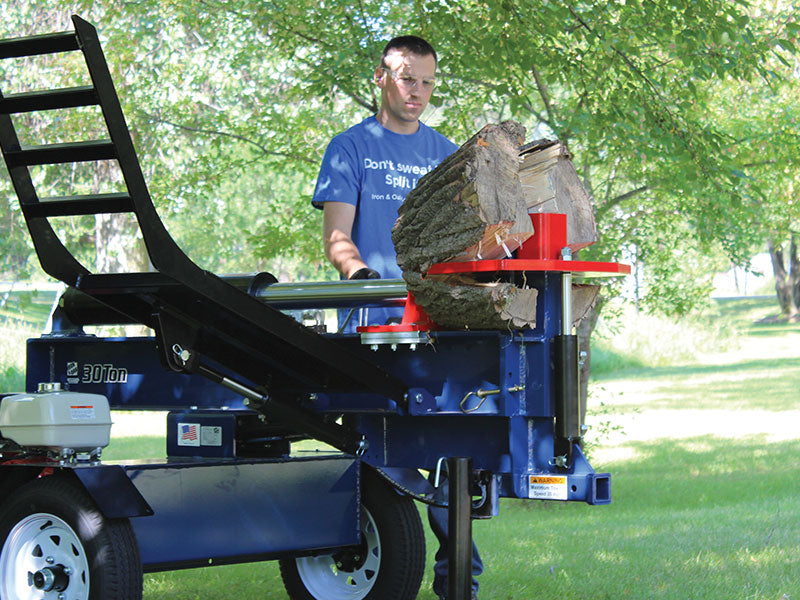

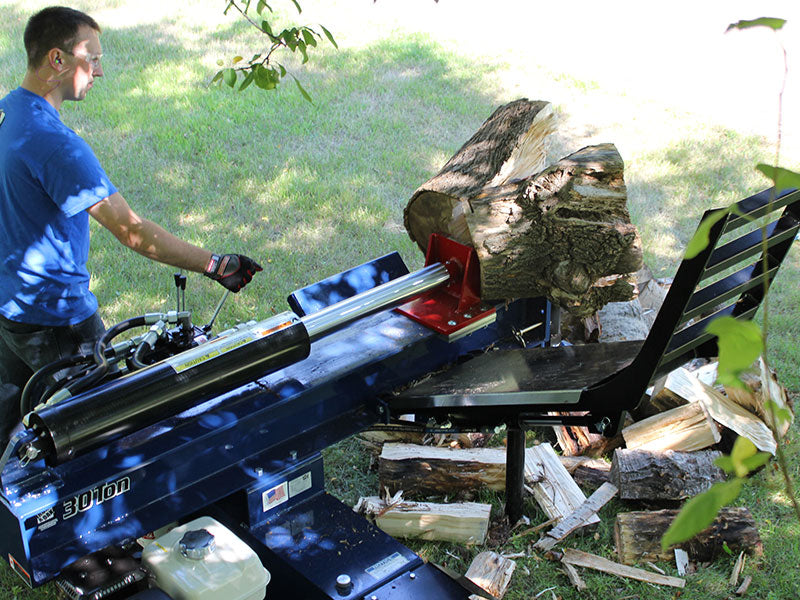

The Iron and Oak 30 Ton Log Splitter with Log Lift is designed to work more efficiently or less laboriously for heavy duties of wood splitting. Equipped with inbuilt hydraulic lifting of logs, this splitter hence makes manipulating big logs pretty easy, hence demanding less strain and maximizing productivity while operating. It is durable and reliable, making it ideal for preparing firewood and taking care of other wood-splitting tasks, from professional jobs to residential contexts.

Options:

Drainzit Oil Hose Kit - Drainzit oil hoses make changing oil easier and cleaner! Drainzit oil drain hoses allow you to change the oil in your small, gas-powered engine without tipping, dismounting, or modifying your engine in any way.

Detailed Specifications

• Tonnage: 30 Ton - 60,000 lbs
• Engine: Honda GX 390
• Beam: Heavy Duty 8" H Beam
• Wedge: 12" High 20" Wide - Carbon steel, hydraulic 4-way wedge
• Cylinder Stroke:24 Inches
• Log Opening: 25 Inches
• Cycle Time: 12 seconds (approx)

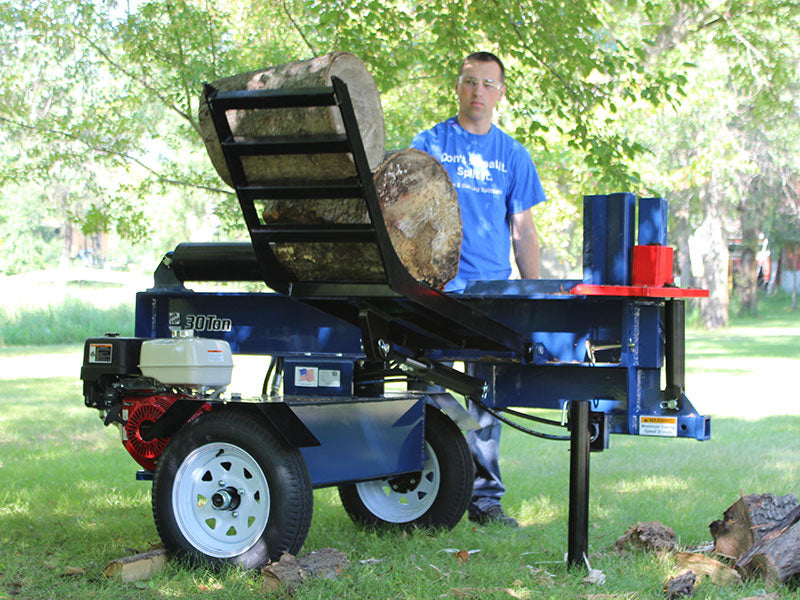

• Log Lift: Lift logs up to 500 lbs.
• Wheels and Tires: High-Speed, 4.80 X 12.00 Highway Rated
• Hitch Coupler: 2 Inch locking ball (standard)
• Cylinder Size:5" x 24" Clevis type cylinder welded body 3" rod
• Hydraulic Tank:14 Gallons
• System Capacity: 16 Gallons (including tank, cylinder, hoses, filter)
• Hydraulic Filter: Yes - Spin on type, 60 micron filter
• Hydraulic Pump: 22 GPM (2 Stage Pump)
• Secondary Pump: Dedicated Pump Controls Lift & 4 Way

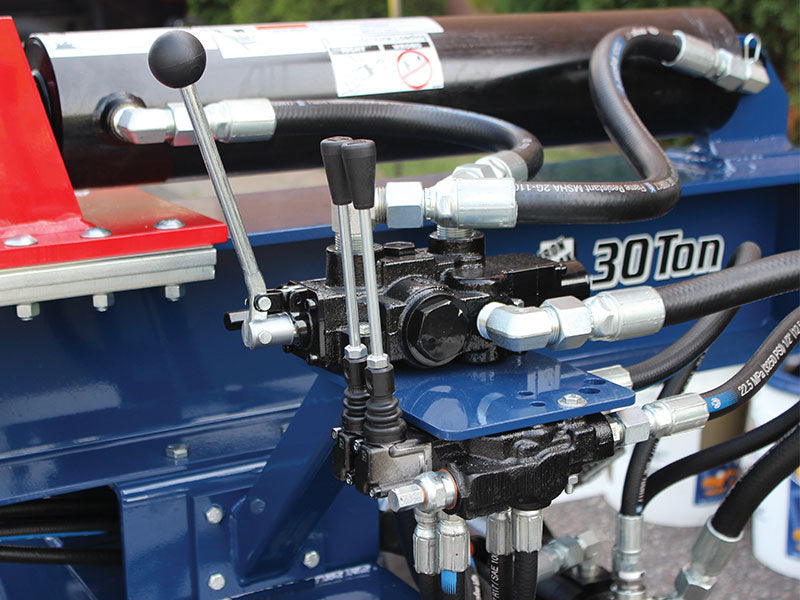

• Control Valve: Auto Return
• Weight:1338
• Made in USA: Yes
