Iron and Oak 30 Ton Vertical Horizontal Log Splitter Torsion Axle

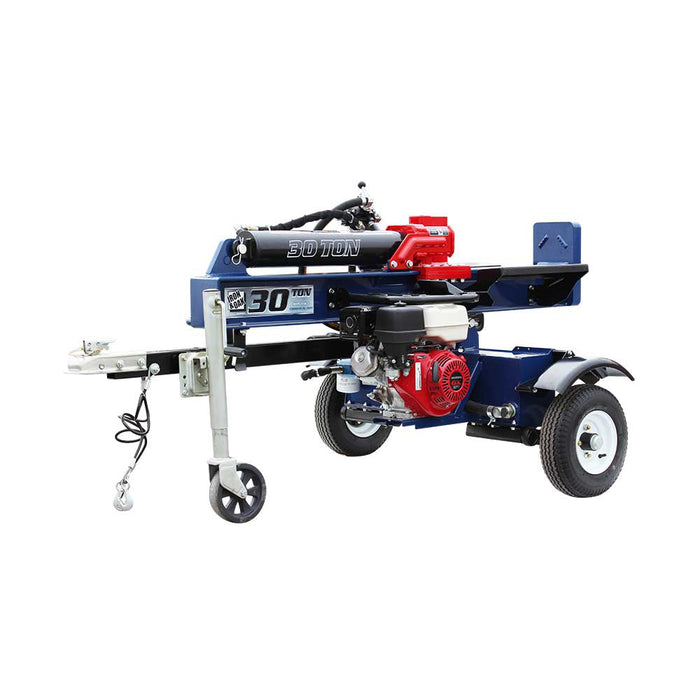

Iron and Oak 30 Ton Vertical Horizontal Log Splitter

The Iron and Oak 30-ton Log Splitter is an enduring, strong, and versatile work tool for splitting heavy wood. Because it has options for both vertical and horizontal operating modes, added with a torsion axle for stability, this log splitter is surely designed to tackle big logs with ease in every task thrown its way. For professionals and homeowners alike, it offers both precision and efficiency in meeting their wood-splitting needs.

Detailed Specifications

• Tonnage: 30 Ton - 60,000 lbs

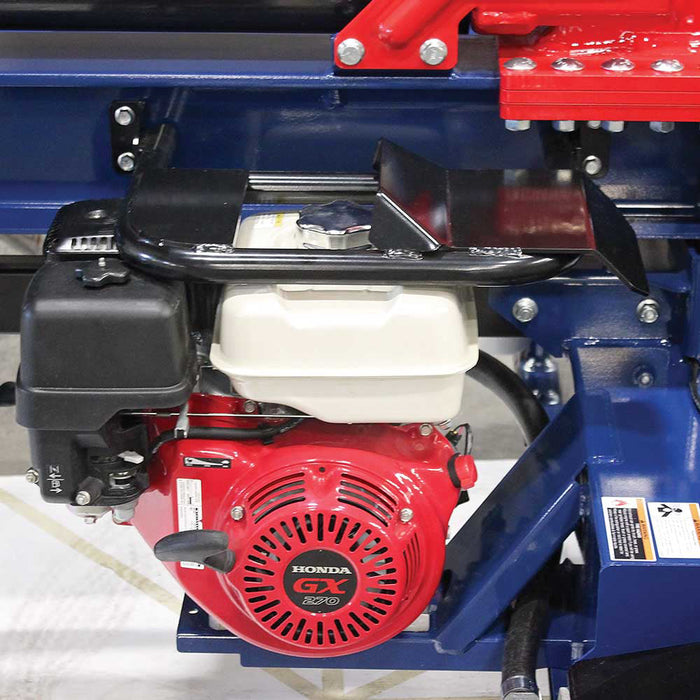

• Engine: Honda GX270 9HP Commercial Engine
• Beam: Heavy Duty 6" Beam
• Wedge: 7.5 Inches high
• Cylinder Stroke: 24 Inches
• Log Opening: 25 Inches
• Cycle Time: 12 seconds (approx)

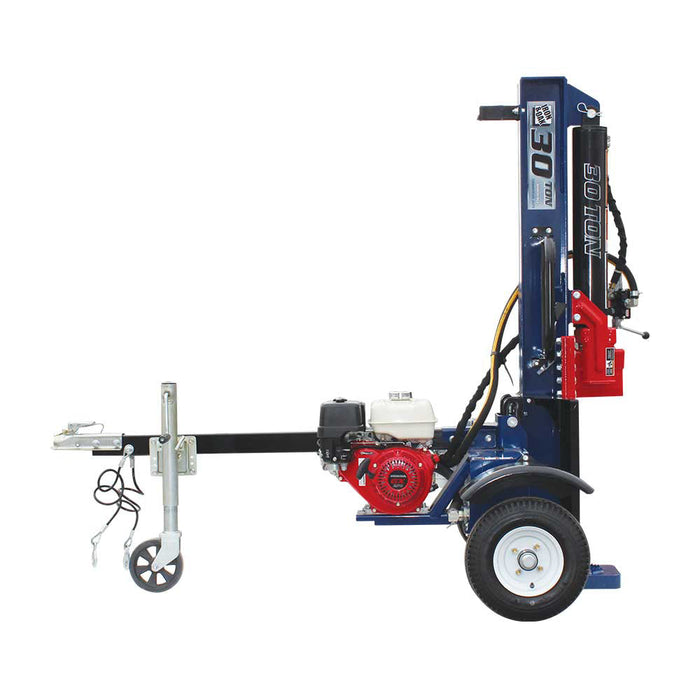

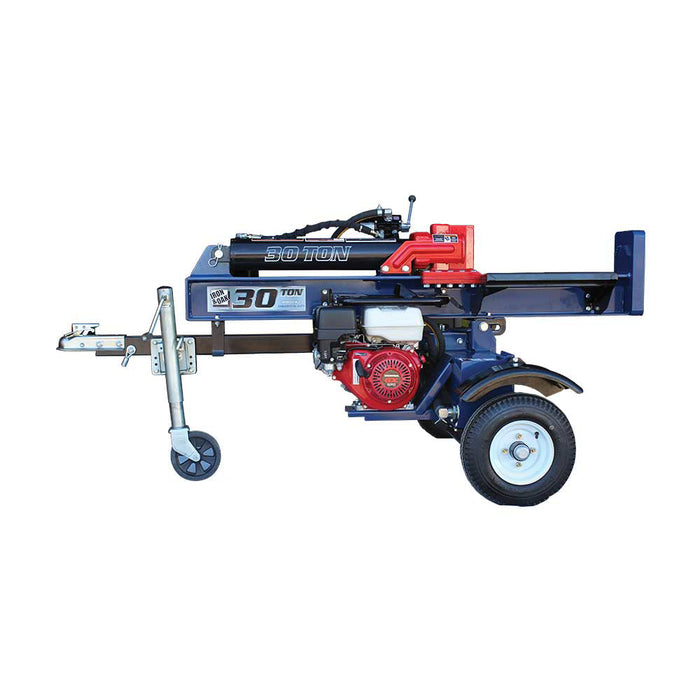

• Operating Position: Horizontal or Vertical
• Wheels and Tires: High-Speed, 4.80 x 4.00 x 8" (bolt-on)
• Operating Dimensions: Length: 92" Width: 48" Height: 34"
• Hitch Coupler: 2 Inch locking ball (standard)
• Cylinder Size: 4.5" x 24" Clevis type cylinder welded body 2" rod
• Hydraulic Tank: 9 Gallon
• System Capacity: 10.5 Gallons (including tank, cylinder, hoses, filter)
• Hydraulic Filter: Yes - Spin on type, 60 micron filter
• Hydraulic Pump: 16 GPM ( 2 Stage pump)
• Safety Control Valve: Detent - Auto return
• Weight: 730
• Made in USA: Yes
• Log Cradles / Tables: Included
• Engine Guard: Optional

Features

• Auto latch system locks beam into the horizontal position for safe towing
• Enhanced handle to assist with transitioning the unit between horizontal and vertical operating positions
• The 4-stage hydraulic filtration system prevents damage to the hydraulic system by removing metal particles and other micro-particles that can contaminate and damage the machine. Components include a suction strainer, return line filter, breather cap air filter, and magnetic drain plug
• Offset valve for a better operator position

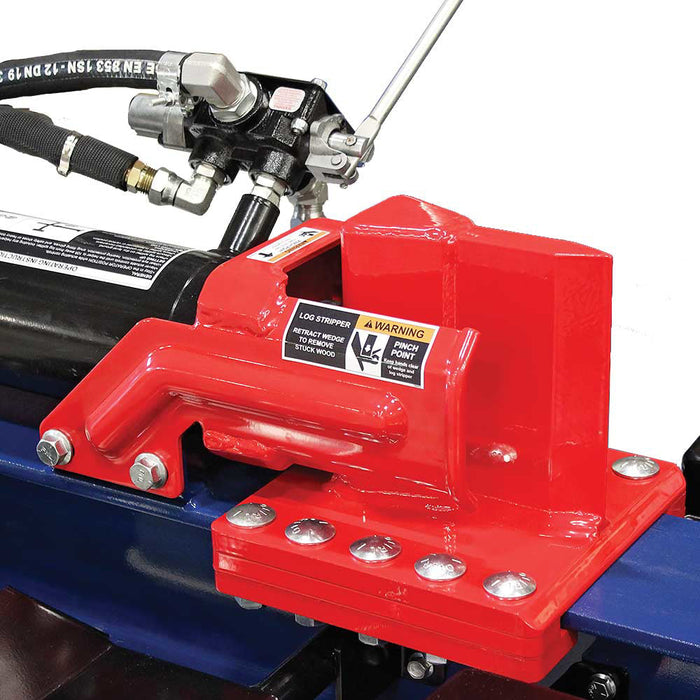

• Heavy-duty wedge design with five bolts per side
• Halite commercial cylinder seals
• Log dislodger and log cradle standard
• Larger jack wheel makes it easier to move
• Tow cables included
• Torsion axle and engine guard standard
