Iron and Oak Vertical Horizontal 30 Ton Log Splitter

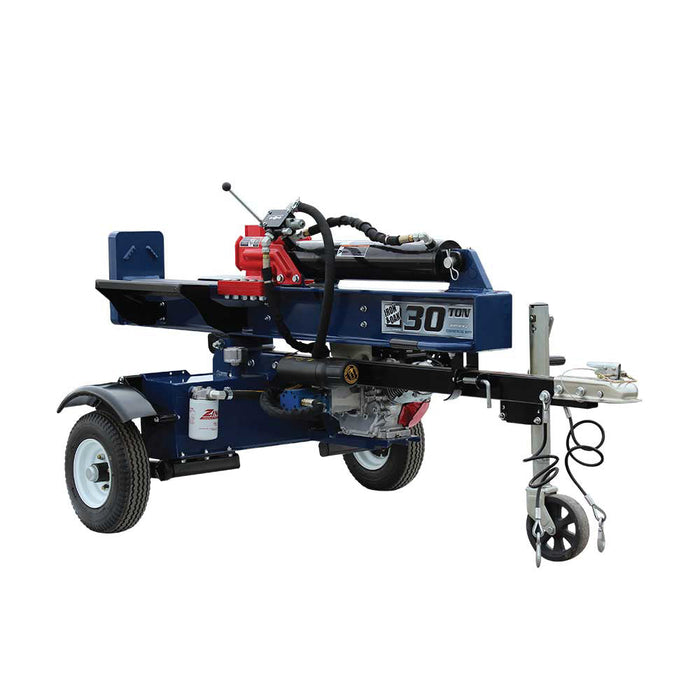

Iron and Oak 30 Ton Vertical Horizontal Log Splitter

The Iron and Oak 30-ton log splitter is designed for power and versatility, making it the total solution for all your wood-splitting needs. Vertical and horizontal adjustment is easily made to provide flexibility for splitting large, heavy logs as well as smaller, more manageable pieces. Constructed for endurance, this log splitter meets the tough demands of both professionals and homeowners who seek dependability and efficient performance.

This log splitter is fully customizable with the following options:

• Log Dislodger - (Now Included Free) A log dislodger ejects stringy logs that stick on the wedge when it retracts. The log will hit the dislodger and self dislodge so you don't have to pull or hammer off the wood.
• Engine Guard - Bolts to the beam and protects engine from falling wood.
• Drainzit Oil Hose Kit - Drainzit oil hoses make changing oil easier and cleaner! Drainzit oil drain hoses allow you to change the oil in your small, gas-powered engine without tipping, dismounting, or modifying your engine in any way.
• Log Splitter Cover: High-quality log splitter cover with draw strings to protect your investment from the elements.

Features

• Auto latch system locks beam into the horizontal position for safe towing
• Enhanced handle to assist with transitioning the unit between horizontal and vertical operating positions
• The 4-stage hydraulic filtration system prevents damage to the hydraulic system by removing metal particles and other micro-particles that can contaminate and damage the machine. Components include a suction strainer, return line filter, breather cap air filter, and magnetic drain plug
• Offset valve for a better operator position
• Heavy-duty wedge design with five bolts per side
• Halite commercial cylinder seals
• Log dislodger and log cradle standard
• Larger jack wheel makes it easier to move
• Tow cables included

Detailed Specifications

• Tonnage: 30 Ton - 60,000 lbs
• Engine: Honda GX270 9HP Commercial Engine
• Beam: Heavy Duty 6" Beam
• Wedge: 7.5 Inches high
• Cylinder Stroke: 24 Inches
• Log Opening: 25 Inches
• Cycle Time: 12 seconds (approx)
• Operating Position: Horizontal or Vertical
• Wheels and Tires: High-Speed, 4.80 x 4.00 x 8" (bolt-on)
• Operating Dimensions: Length: 92" Width: 48" Height: 34"
• Hitch Coupler: 2 Inch locking ball (standard)
• Cylinder Size: 4.5" x 24" Clevis type cylinder welded body 2" rod
• Hydraulic Tank: 9 Gallon
• System Capacity: 10.5 Gallons (including tank, cylinder, hoses, filter)
• Hydraulic Filter: Yes - Spin on type, 60 micron filter
• Hydraulic Pump: 16 GPM ( 2 Stage pump)
• Safety Control Valve: Detent - Auto return
• Weight:730
• Made in USA: Yes
• Log Cradles / Tables: Included
• Engine Guard: Optional
